torispherical head
deliyuan
Hot selling 304 stainless steel torispherical head
Product Specification
| Material | Stainless steel, carbon steel, aluminum, special steel, etc. |
| Grade | Carbon steel, Stainless steel, Aluminum, Titanium, etc. According to customers requirement |
| Color | Natural |
| Reduction ratio | About 10% |
| Certificate | ISO9001, CE, ASME, CSA, SGS |
| Standard | ANSI, ASME, MSS, API, DIN, JIS |
| Size range | 50mm-10000mm with integral formed, larger sizes with subsection formed can be specified |
| Thickness | 2mm- 300mm |
| Surface Treatment | Sand Blasting, Pickling, Polishing |
| Technology | Hot pressing, cold pressing |
| Test | UT, RT, MT, PT, ET |
| Applications | Mainly for pressure vessels and boilers in diverse industry such as oil, chemical, winery, pharmaceutical, environmental and military. |

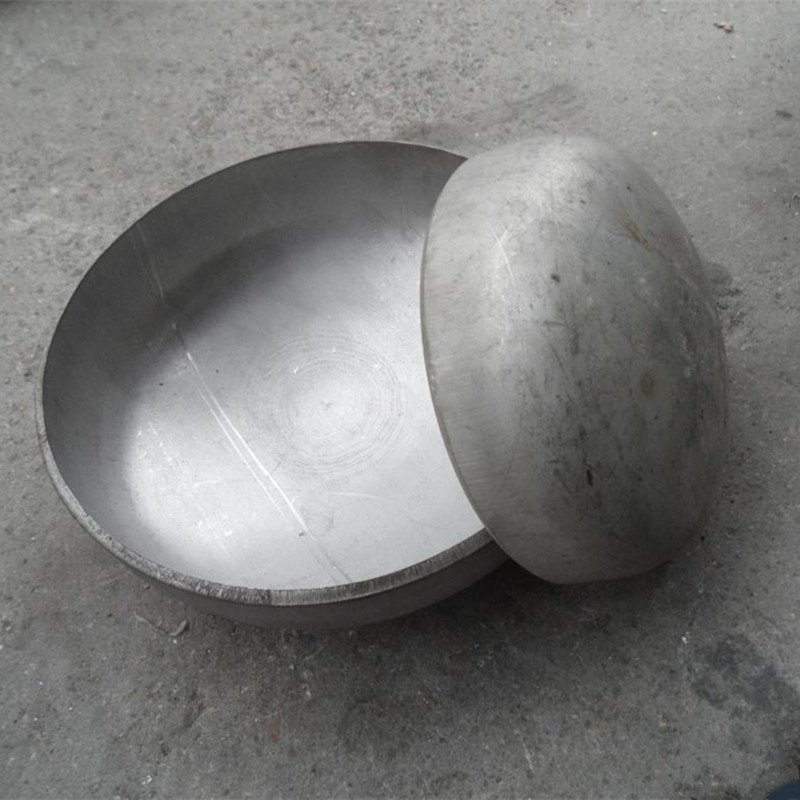

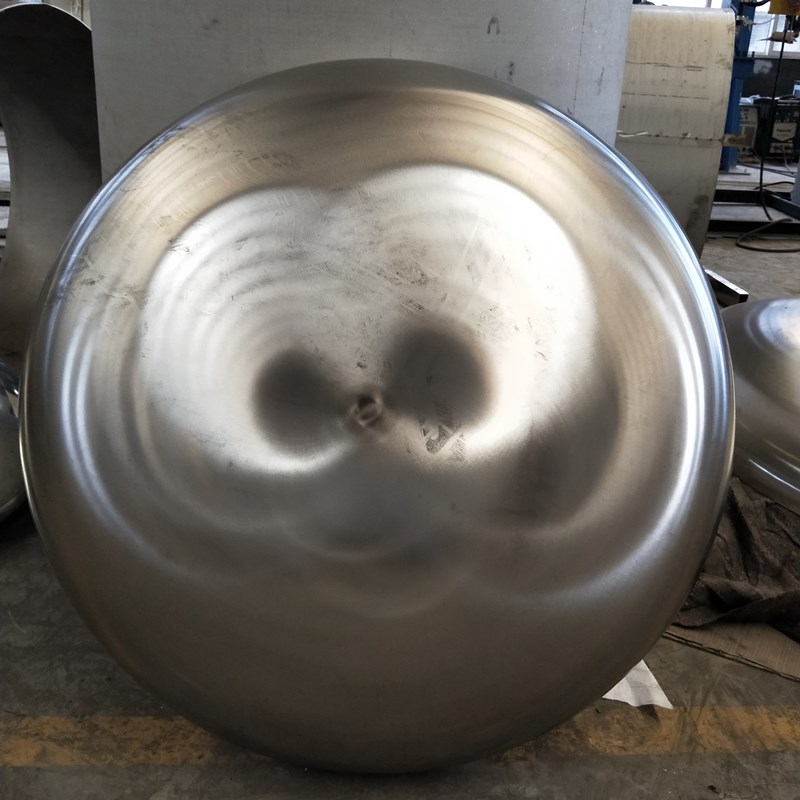

Product Show:
We can produce torispherical head of different materials, such as carbon steel, stainless steel, etc.
We can also provide customized processing to meet the different needs of customers.
We can also supply other type of torispherical heads according to your drawings.↓↓
| Torispherical Head Parameter Table | ||||||||
| Nominal Diameter (mm) | Total Depth (mm) | Volume (m³) | Nominal Diameter (mm) | Total Depth (mm) | Volume (m³) | Nominal Diameter (mm) | Total Depth (mm) | Volume (m³) |
| 300 | 83 | 0.0044 | 1100 | 238 | 0.1555 | 2600 | 690 | 2.5131 |
| 350 | 93 | 0.0066 | 1200 | 258 | 0.1993 | 2700 | 715 | 2.8055 |
| 400 | 103 | 0.0095 | 1300 | 277 | 0.2506 | 2800 | 740 | 3.1198 |
| 450 | 112 | 0.013 | 1400 | 296 | 0.31 | 2900 | 765 | 3.4567 |
| 500 | 122 | 0.0173 | 1500 | 316 | 0.3782 | 3000 | 790 | 3.817 |
| 550 | 132 | 0.0224 | 1600 | 335 | 0.4556 | 3100 | 815 | 4.0215 |
| 600 | 141 | 0.0284 | 1700 | 354 | 0.543 | 3200 | 840 | 4.611 |
| 650 | 151 | 0.0355 | 1800 | 374 | 0.6408 | 3300 | 865 | 5.0463 |
| 700 | 161 | 0.0436 | 1900 | 393 | 0.7497 | 3400 | 890 | 5.508 |
| 750 | 170 | 0.0528 | 2000 | 413 | 0.8703 | 3500 | 915 | 5.9972 |
| 800 | 180 | 0.0632 | 2100 | 447 | 1.0551 | 3600 | 940 | 6.5144 |
| 850 | 190 | 0.075 | 2200 | 466 | 1.2058 | 3700 | 965 | 7.0605 |
| 900 | 199 | 0.0881 | 2300 | 486 | 1.3703 | 3800 | 990 | 7.6364 |
| 950 | 209 | 0.1026 | 2400 | 505 | 1.5491 | ... | ... | ... |
| 1000 | 219 | 0.1186 | 2500 | 524 | 1.7427 | 7000 | 1790 | 46.438 |
About the packaging of the torispherical head
Standard seaworthy export packing: Plywood Box, Plywood or Steel Pallet or as per customers’ requirement.
Our Workshop:
We can provide the following aspects:
1. Help customer to design, making drawing;
2. Providing free samples+ dimension inspection report+ material report;
3. Checking raw material, and inform customer before mass production;
4. Informing customer production schedule weekly;
5. Arrange shipment, and Inform customer in advance 7 days before finishing the order;
6. Before shipment, send the detailed product pictures, dimension inspection report, material report to customer;
7. Welcome customer inspection and the third party inspection;
8. Expressing original document;
9. Contact us for more information.
Main Product:
About Company:
| We have participated in the construction of many key projects in China and has been appraised as an excellent supplier every year. In 2017, our group company achieved the distribution of more than 1.8 million tons steel products. Based on the field of steel pipes and global scientific development, we specialize in seamless pipe, spiral pipe, galvanized pipe, stainless steel pipes, alloy pipe, RHS tubes and other metal pipes as the company's franchise business. and other steel pipe accessory product such as: steel hemisphere, ellipsoidal head, tank dished head, flange ,elbow and rust abrasive products, etc. we strive to provide customers with the best quality and perfect service. With over 20 years of development history, more than 500 people professional sales and service team, and over 30 countries and regions of marketing network, Tai’an Deliyuan steel is joining hands with China manufacture top 100 steel products, striding forward, towards global and serving the world. |
Our Team:
Our Customer:
Our customers cover various fields of national economy such as energy, chemical industry, electric power, construction, machinery, shipping, public utilities, medical and health care, aviation industry, military industry and so on.
FAQ:
A: If you have drawings, we will be entirely in accordance with production drawings.
If you do not have the drawing, you can tell me the product data.
There are several important data, such as material, type of head ( We have elliptical head, hemispherical head, dished head, flat head, etc.), diameter, thickness, special tolerances or requirements.
We can do the drawings according to your requirements, and you confirm that the final product drawings.
A: For carbon steel products, we sandblasting descaling product surface. For stainless steel products, we use acid to remove surface oil and impurities.
A: Our production staff is trained through national quality department, and obtain the corresponding certificate, with years of production and design experience.
Weld must undergo X-ray inspection to ensure that no defects.
A: Our company also is surrounded by a lot of ancillary businesses, such as flanges, boiler, oil refining equipment, etc.
We can help you matching the highest quality products with the lowest prices.
