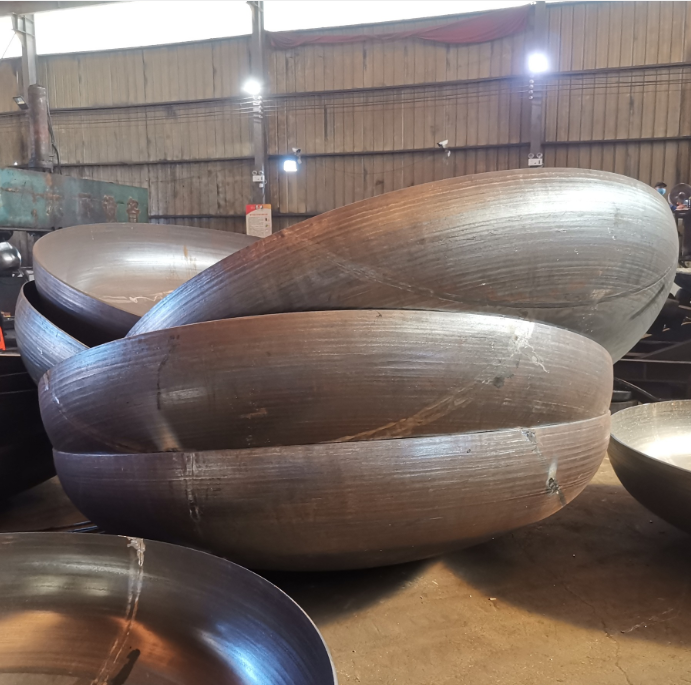

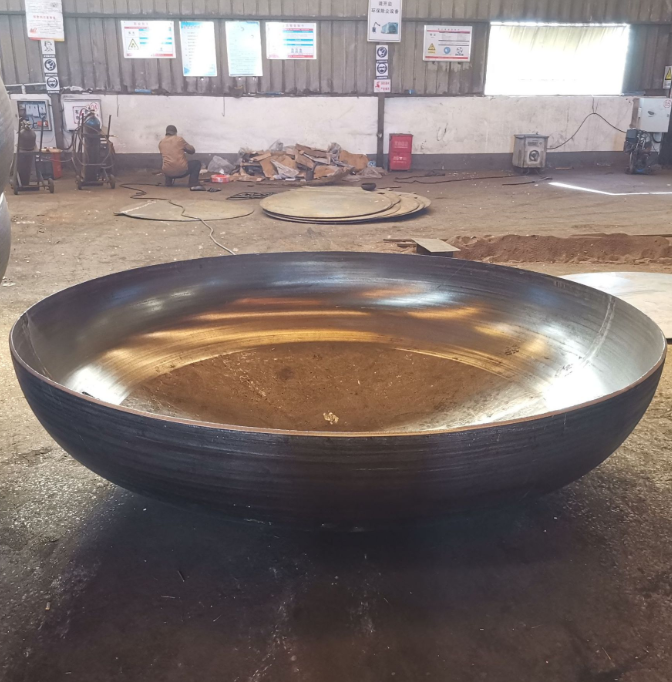

A516Gr70N DIN28011 2:1 ellipsoidal dish head for pressure vessel

Quantity:

A516Gr70N DIN28011 2:1 ellipsoidal dish head for pressure vessel



Product Description

     Material

 Stainless steel, carbon steel, aluminuim, corten steel

 According to customer requirements

    Standard

 ANSI, ASME, MSS, API, DIN, JIS

   Certification

 ISO9001, ISO1400, OHSAS18001

        Test

 UT, RT, MT, PT, ET

Reduction ratio

 About 10%

     Surface            treatment

 Natural color, sandblasting, mirror polishing, acid pickling, etc.

   Diameter

 89-10000mm

 Wall thickness

 2-300mm

  Connection

 Welding

  Application

 Such as fire pit, oil, chemical industry, water conservancy, electric power,        boiler, machinery, metallurgy, sanitary construction, etc.

   Technics

 Hot pressing, cold pressing

    Packing

 Wooden cases, wooden pallet plastic bag or as per customers requirement



A516Gr70N DIN28011 2:1 ellipsoidal dish head for pressure vessel



A516Gr70N DIN28011 2:1 ellipsoidal dish head for pressure vessel



A516Gr70N DIN28011 2:1 ellipsoidal dish head for pressure vessel

A516Gr70N DIN28011 2:1 ellipsoidal dish head for pressure vessel

 A516Gr70N DIN28011 2:1 ellipsoidal dish head for pressure vesselA516Gr70N DIN28011 2:1 ellipsoidal dish head for pressure vessel

Our packaging

1. Iron Frame

2. Wooden Box

3. Iron pallet

4. Wooden pallet

5. Professional fixation

6. Curstomed requirment



A516Gr70N DIN28011 2:1 ellipsoidal dish head for pressure vessel



Heat Treatment:
1,Normalized
2,Annealed
3,Quenched and Tempered
4,Normalized and Tempered


Surfacce Treatment:
 Carbon Steel---Sand Blasting     Stainless Steel----Acid Pickling



The spinning marks on the surface of the elliptical head can be processed





A516Gr70N DIN28011 2:1 ellipsoidal dish head for pressure vessel



Welding Processes:
Stick-Electrode    Semi-Automatic    Submerged Arc    Gas Shielded



Edge Prepped:
Trimmed /Untrimmed /Beveled / Tapered



 A516Gr70N DIN28011 2:1 ellipsoidal dish head for pressure vessel



Diameter:
Manufacturing CONVENTIONAL TANK HEADS Common diameter from 89mm to 7000mm,thickness from 3 to 40mm



A516Gr70N DIN28011 2:1 ellipsoidal dish head for pressure vessel

Q: What's the information should I provide when inquiry?

A: If you have drawings, we will be entirely in accordance with production drawings.

If you do not have the drawing, you can tell me the product data.

There are several important data, such as material, type of head ( We have elliptical head, hemispherical head, dished head, flat head, etc.), diameter, thickness, special tolerances or requirements.

We can do the drawings according to your requirements, and you confirm that the final product drawings.

Q: What are surface treatment of the product?

A: For carbon steel products, we sandblasting descaling product surface. For stainless steel products, we use acid to remove surface oil and impurities.

Q: How do you ensure the quality of products?

A: Our production staff is trained through national quality department, and obtain the corresponding certificate, with years of production and design experience.

Weld must undergo X-ray inspection to ensure that no defects.

Q: Can you help us matching related products?

A: Our company also is surrounded by a lot of ancillary businesses, such as flanges, boiler, oil refining equipment, etc.

We can help you matching the highest quality products with the lowest prices.
